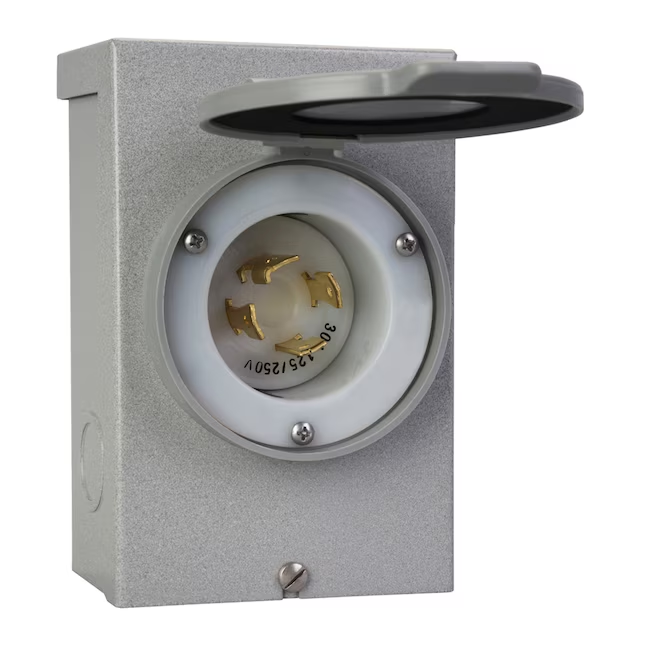

Reliance 30-Amp-Space Generator Power Inlet Box - PB30

Overview

Makes generator hook up easy. Inlet box is hard-wired to a transfer switch or generator panel. The power inlet box can be wired directly to the transfer switch or panel using one of the four combination 1/2 In. and 3/4 In. knockouts (one on each side, bottom and back). Easy installation. Exclusive patented design provides generous wiring space and facilitates rough-in. Rain tight, designed for outdoor use with the pro/Tran transfer switches and panel/link manual transfer panels and generator ready load centers. Rated at 30 Amp at 125/250 VAC.
Makes generator hook up easy when inlet box is hard-wired to a transfer switch or generator panel

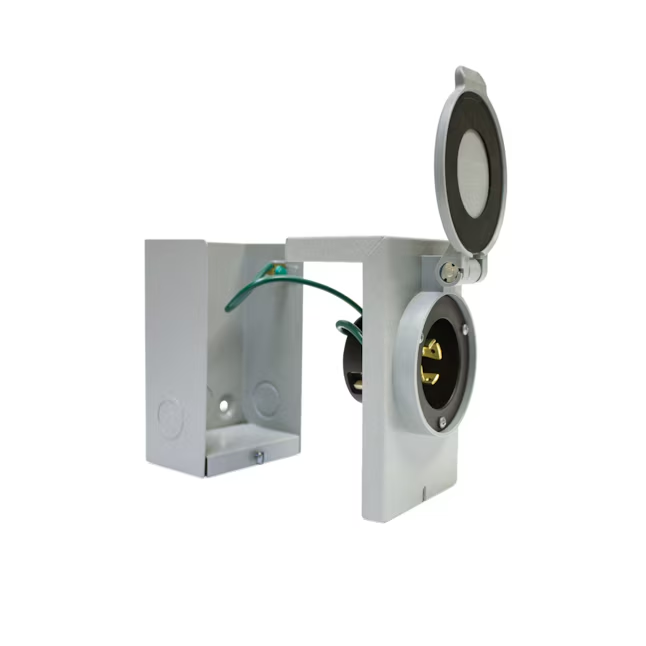

The power inlet box can be wired directly to the transfer switch or panel using one of the four combination half inch and three quarter inch knockouts one on each side, bottom and back

Easy installation, exclusive patented design provides generous wiring space and facilitates rough in

Rain tight, designed for outdoor use with the pro/Tran transfer switches and reliance panel/link manual transfer panels and generator ready load centers

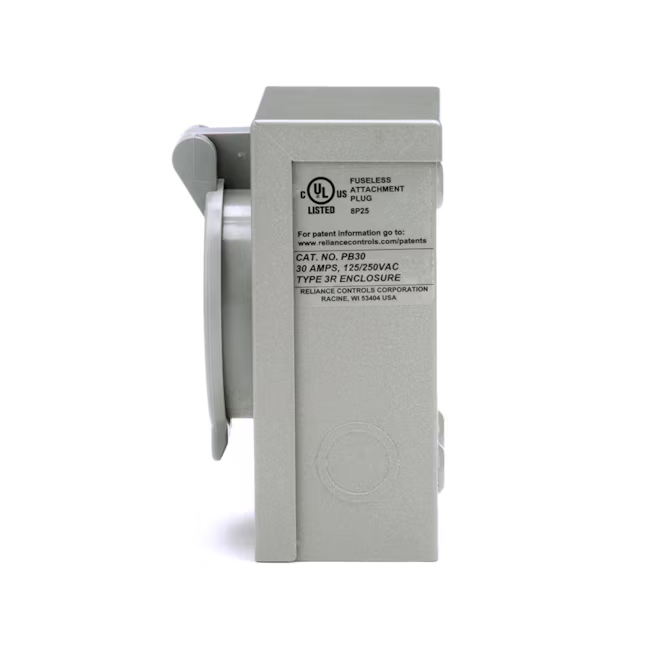

Rated at 30-AMPS at 125/250 VAC
