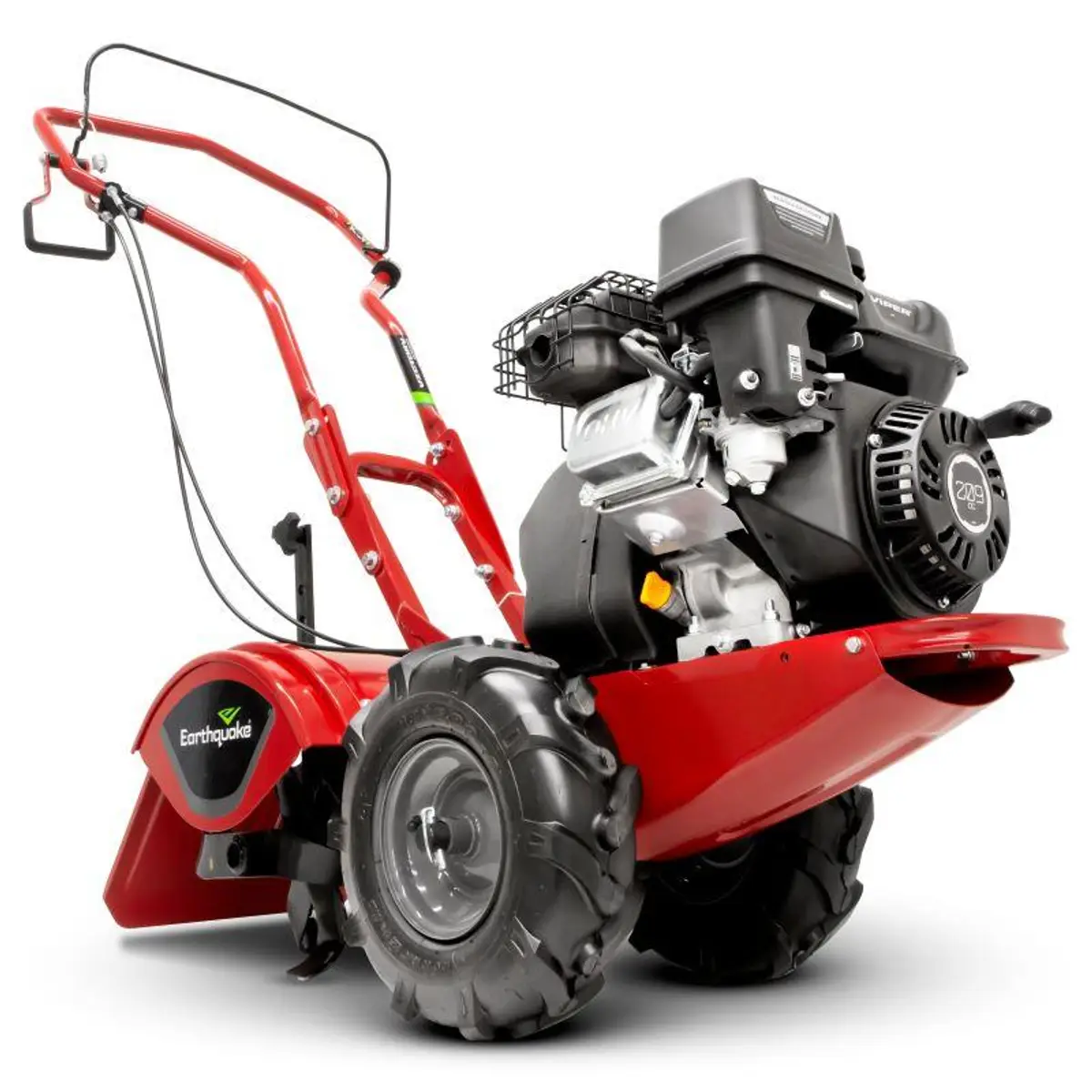

Earthquake 209cc Victory Rear Tine Tiller

Overview

The Earthquake Victory features a 209cc Viper engine that delivers optimal power to the rear-mounted counter rotating (CRT) tines for aggressive soil turning capability. This compact and powerful tiller allows you to till the most stubborn soil when breaking new ground while also providing an incredibly maneuverable tiller for row maintenance during the growing season. With the Instant Reverse functionality, you can effortlessly move back and forth and turn in tight spaces without having to shift. Adjustable handlebars and drag stake give you the tools you need to customize the tiller to meet your needs and the needs of your garden.

Features

• Powerful 209cc 4-Cycle Viper Engine
• 16” Tilling Width
• 10” max tilling depth
• Instant Reverse allows for easy maneuvering without having to shift
• 13” self-propelled pneumatic wheels power through any soil
• Counter rotating tines bust through sod to create new gardens
• 1- or 2-handed operation

Specifications

• Brand - Earthquake
• Engine Torque (FT-LB)
• 10.5 FT-LB @ 2500 RPM
• Oil Capacity
• 16.9 FL-OZ
• Fuel Tank Capacity
• 0.87 Gal
• Tilling Width
• 16
• Tilling Depth
• 10
• Tine Rotation
• CRT
• Tine Diameter
• 11.14
• Tine Speed
• 216 RPM
• Drive System
• Gear Driven
• Engine Brand
• Viper
• Engine Type
• 4-Cycle
• Fuel Type
• 87+ Octane Unleaded Gasoline
• Gear Ratio
• WHEELS 61:1 / TINES 7.5:1
• Gross Weight (LB)
• 164
• Handle Material
• Steel
• Net Weight (LB)
• 154
• Number of Speeds
• 1
• Operation Dimensions
• 53.30 X 22.92 X 47.53 IN
• Recommended Oil
• SAE 10W-30 OR 15W-40
• Self Propelled
• Yes
• Start Type
• Recoil
• Tine Torque
• 191FT-LB
• Tire Diameter (IN)
• 13
• Tire Material
• Rubber
• Tire Width (IN)
• 4.13
